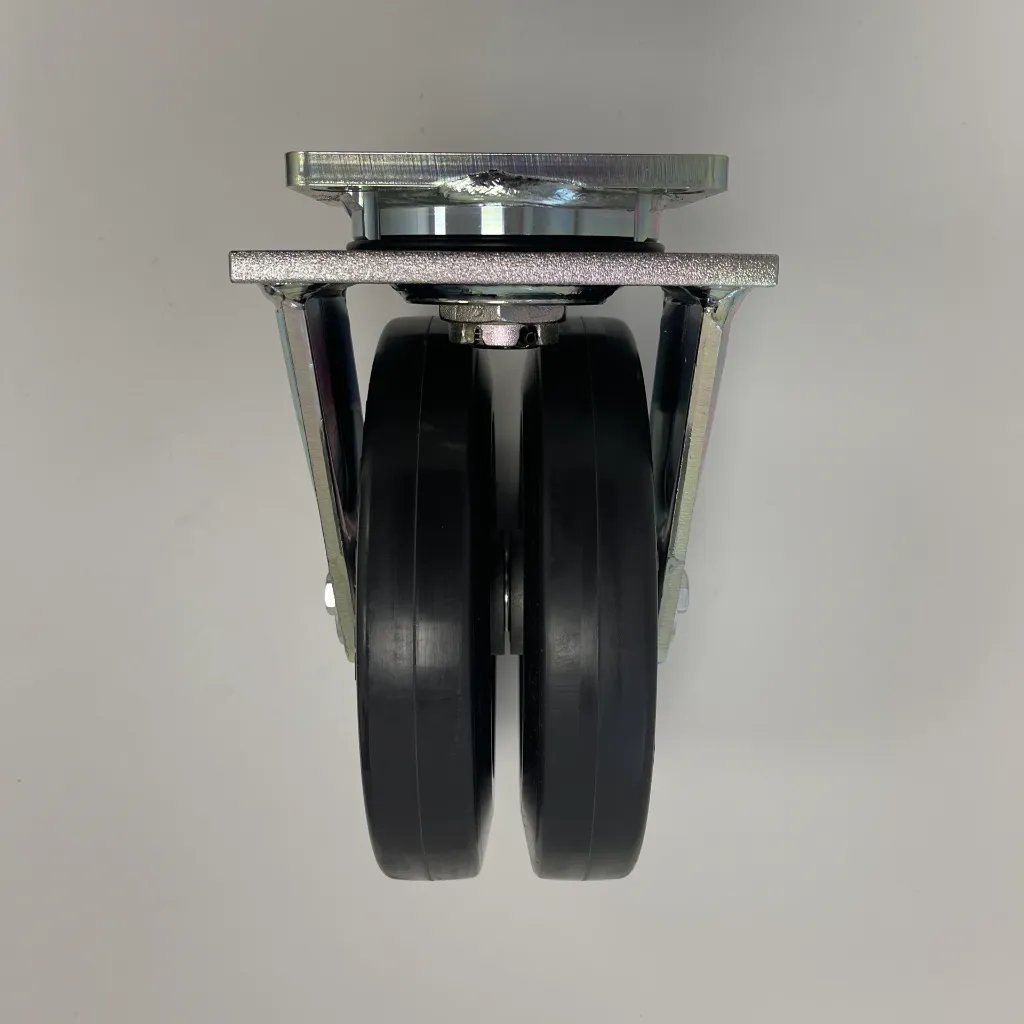

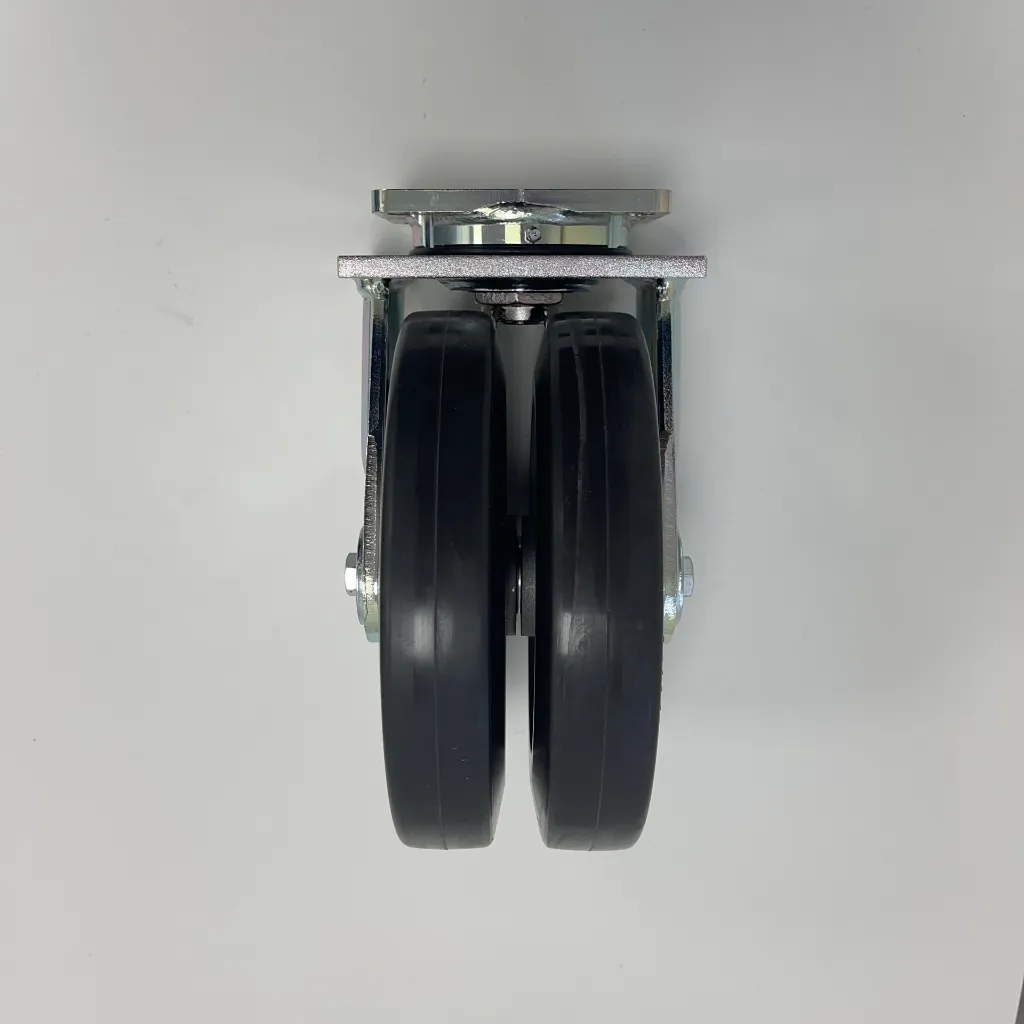

Heavy duty welded steel twin wheel swivel castor, heavy duty swivel head, heavy duty wheel, with Blickle Besthane® Soft polyurethane tread, with aluminium wheel centre, antistatic
Technical data:
• wheel Ø: 250 mm, wheel width: 2 x 50 mm, load capacity at 4 km/h: 1,530 kg, bearing type: ball bearing, total height: 305 mm, plate size: 140 x 110 mm, bolt hole spacing 105 x 75–80 mm, bolt hole Ø: 11 mm, offset swivel castor: 75 mm
Bracket: LSD series
• particularly robust welded steel construction, zinc-plated, yellow passivated, Cr6-free
• axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
• bolted and secured welded central kingpin, extremely strong
• dust and splash-proof
• grease nipple
Wheel: ALST series
• tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour dark grey, non-marking, non-staining
• wheel centre: die-cast aluminium, colour silver grey
Other features:
• high chemical resistance to many aggressive substances
• operating temperature: -20 °C to +70 °C, temporarily up to +90 °C,
reduced load capacity over +40 °C
• electrical conductivity (ohmic resistance) ≤ 107
Ω
